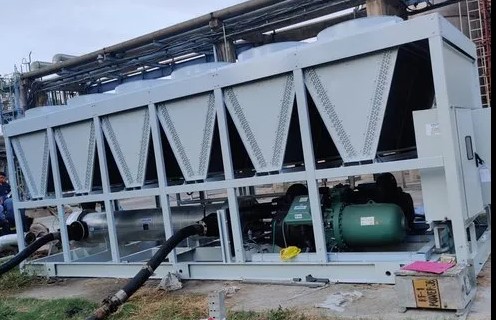

115 TR Air-Cooled Chiller Rental

115 TR Air-Cooled Chiller Rental

Home / 115 TR Air-Cooled Chiller Rental

OZONE Energy Rental provides 115TR Air-Cooled Chillers on rent at most competitive prices. Our innovative chiller rental solutions are designed for efficient, perfect cooling to all type of commercial, industrial and other applications. We rent air-cooled chillers across India and are used in a variety of industries for temperature control requirement.
Contact us now for the best prices for renting 115TR Air Cooled Chilled.

Technical Specifications for 115TR Air Cooled Chillers for Rent:

Air Cooled Screw Chiller Technical Specifications
Description Model OAS1380TSAC
Cooling Capacity kcal/h 348300
KW 405
TR 115
Input Power KW 145
Max Current A 246
Power Source 3PH~380V/415V/480V~50Hz/60HZ
Refrigerant Type R22a/R134a/R407c
Control electrical expansion valve
Compressors Type Semi-hermetic screw
Power (KW) 134
Capacity Control (%) 0-25-50-75-100
Evaporator Type Shell and tube type
Entering Water Temperature (*C) 12*C
Leaving Water Temperature (*C) 7*C
Flow (m3/h) 70
Connection (inch) 5''
Condenser Type Air-cooled type-high efficiency finned copper tube
Fan Type Big volume & low noise axial fan
Entering Air Temperature (*C) 37*C
Power (KW) 1.1x10
Air Volume (m3/h) 145000
Safety Protection Devices Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti-freezing protection, exhaust overheat protection
Dimension Length 4800
Width 1900
Height 2200
Net Weight KG 3200

**Power Consumption of Primary Pump is not included in above

** Rated in accordance with AHRI 550\590-2011
